Full description

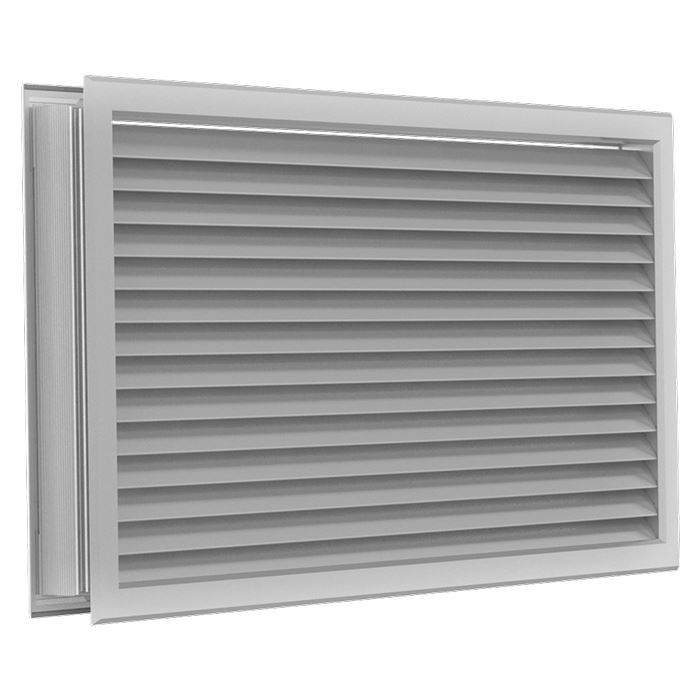

SABRE Door Air Grille Air Transfer Device
SABRE door grilles provide a simple way of transferring air between rooms and other work spaces, whilst the chevron blade design also offers privacy and aids in the reduction of noise.
Constructed from high quality extruded aluminium with a natural anodise finish. The low profile frame and concealed snap on fixing forms an aesthetically visual appeal.
- Secure snap on fixing that requires no fixing screws
- Suitable for door thicknesses between 30-45mm
- Full chevron blades provide privacy and sound reduction
- Low profile louver frame

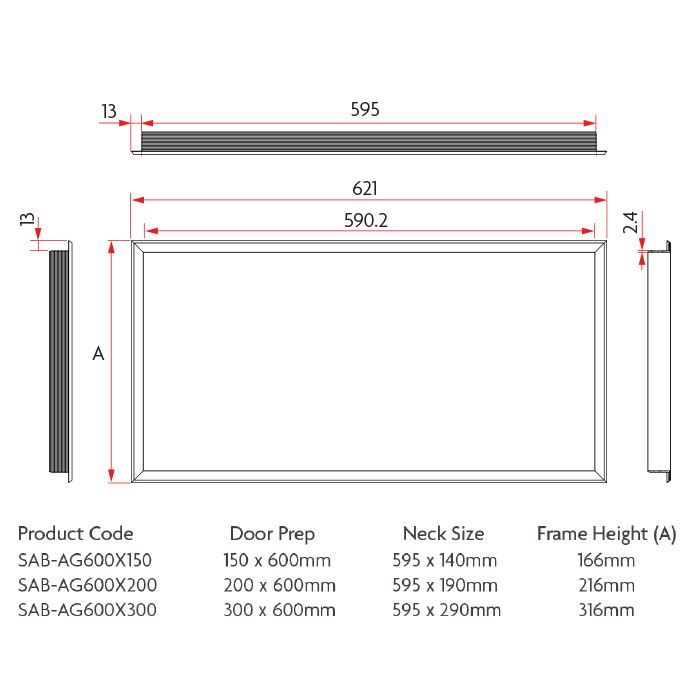

Available in three sizes:
| Product Code |
Door Prep |
Neck Size |
Frame Height (A) |
| SAB-AG600X150-NA |
150 x 600mm |
595 x 140mm |
166mm |
| SAB-AG600X200-NA |
200 x 600mm |
595 x 190mm |
216mm |
| SAB-AG600X300-NA |
300 x 600mm |
595 x 290mm |
316mm |
