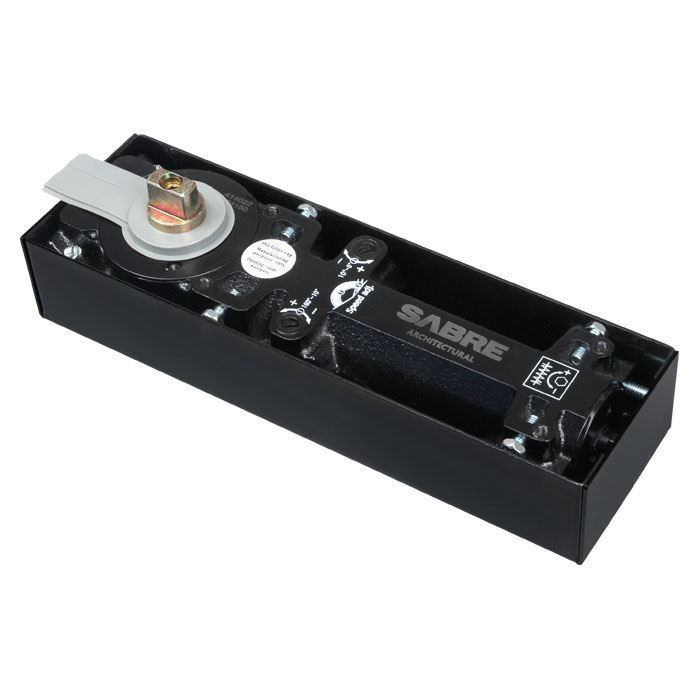

SABRE 750 Floor Spring - Non Hold Open

SUITABLE FOR TIMBER, METAL AND GLASS DOORS. The SABRE 750 Adjustable Strength Floor Spring is designed for high traffic doors that require double or single action operation. The product is installed below the floor level therefore providing an opening clear from obstructions. The 750 comes complete with a stainless steel cover plate to conceal the floor spring body and has optional spindle heights that can be used for varying door clearances that may be required. It has a robust design and has easy adjustment features to suit applications for doors up to a maximum 200kgs in weight and 1100mm in width. The 750 includes a highly efficient cam action mechanism, making it easier for the user to open the door, whilst maintaining strength to also close the door. Note: Top Pivots are not supplied as standard with the 750. Ask your architectural hardware representative for the best pivoting option to suit your door application. SABRE recommends the use of sealing compounds when installed in external and wet area applications..
