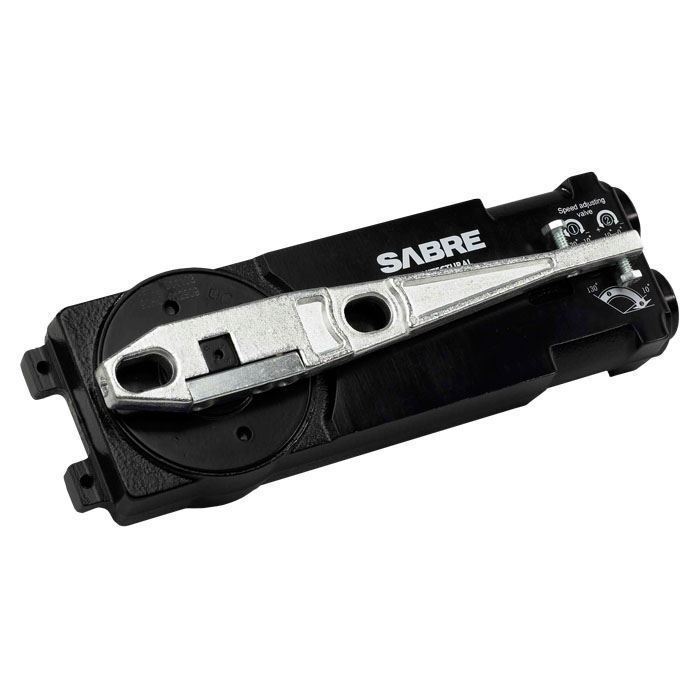

SABRE 850 Transom Closer - Hold Open 90°
SUITABLE FOR ALUMINIUM DOORS. The SABRE 850 Series Transom Closers are used when concealment of the closer is required or when the door is required to operate in both inward and outward directions under control. Transom Closers are ideally suited for pivoting internal or external doors that are found on school, office and commercial buildings. All SABRE 850 Series Transom Closers are manufactured from premium quality cast iron and heat treated internal components that will provide many years of continuous operation.
- SKU:
- SAB-TC
-
-
Full description
SABRE 850 Transom Closer - Hold Open 90°
- Available in Fixed Strength Sizes 3 or 4
- Hold Open 90°
- Suitable for Single and Double Action Doors
- Suits for Door Widths up to 1100mm
- Door Weight up to 100kg
- Minimum Door Thickness 38mm
- Adjustable Latching and Closing Speeds
- Universal Adjustable Bottom Pivot
Note:
Although suitable for aluminium doors, the 850 Transom Closer can be installed on timber frames. However, no cover is available.
DETAILS
- Size 3
- Door Weight up to 100kg
- Up to 950mm wide door
- Closing torque 19Nm
- Size4
- Door weight up to 100kg
- Up to 1100mm wide door
- Closing torque 25Nm
SABRE 850 Transom Closer - Hold Open 90°
- Available in Fixed Strength Sizes 3 or 4
- Hold Open 90°
- Suitable for Single and Double Action Doors
- Suits for Door Widths up to 1100mm
- Door Weight up to 100kg
- Minimum Door Thickness 38mm
- Adjustable Latching and Closing Speeds
- Universal Adjustable Bottom Pivot
Note:
Although suitable for aluminium doors, the 850 Transom Closer can be installed on timber frames. However, no cover is available.
DETAILS
- Size 3
- Door Weight up to 100kg
- Up to 950mm wide door
- Closing torque 19Nm
- Size4
- Door weight up to 100kg
- Up to 1100mm wide door
- Closing torque 25Nm
