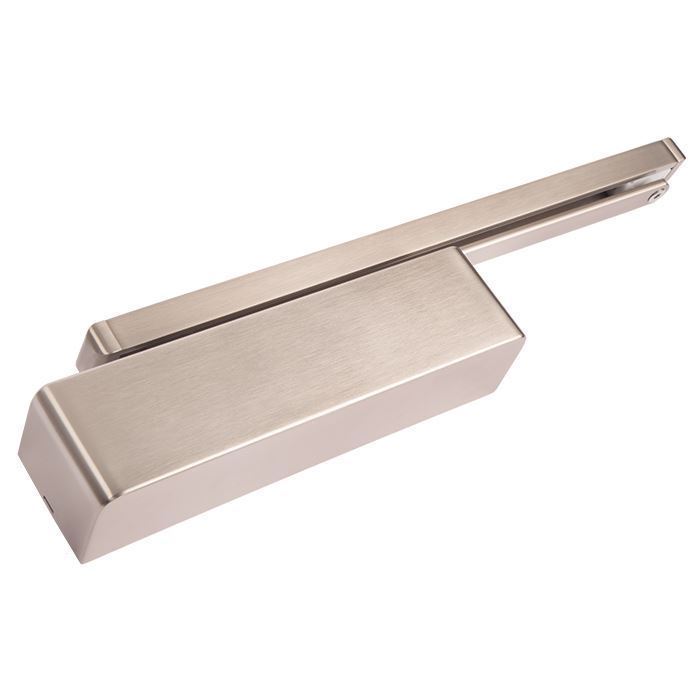

515 Cam Action Door Closer

FOR USE ON TIMBER, METAL AND ALUMINIUM DOORS The 515 is considered the flagship of the SABRE door closer range. The highly efficient cam action closer meets Australian Standard AS1428.1 design for access and mobility. Different from standard rack and pinion closers the cam mechanism allows easy opening which is ideally suited to public buildings, aged care facilities and door openings where children may be entering. The 515 cam action closer is combined with and track arm mechanism which is more aesthetically appealing when compared to normal scissor arm door closers. Its sleek looks are available in standard sliver finish or with stainless steel cover to match with some of the industries stainless door furniture.
SKU:
SAB-DCCA515
Fire Rated 10 Year Mechanical Warranty AS1428.1 Compliant 1-5 Adjustable Spring Strength Back Check Delayed Action
Full description

SABRE 515 Cam Action Door Closer

  • Models to suit push and pull side applications
  • Angle bracket included on all push side application closers
  • Size 1 to 5 spring adjustable
  • Door sizes 750mm to 1250mm wide
  • Door weight 20kg to 100kg
  • Adjustable back check
  • 10 year mechanical warranty

FINISH

  • SIL - Silver
  • SSS - Satin Stainless Steel

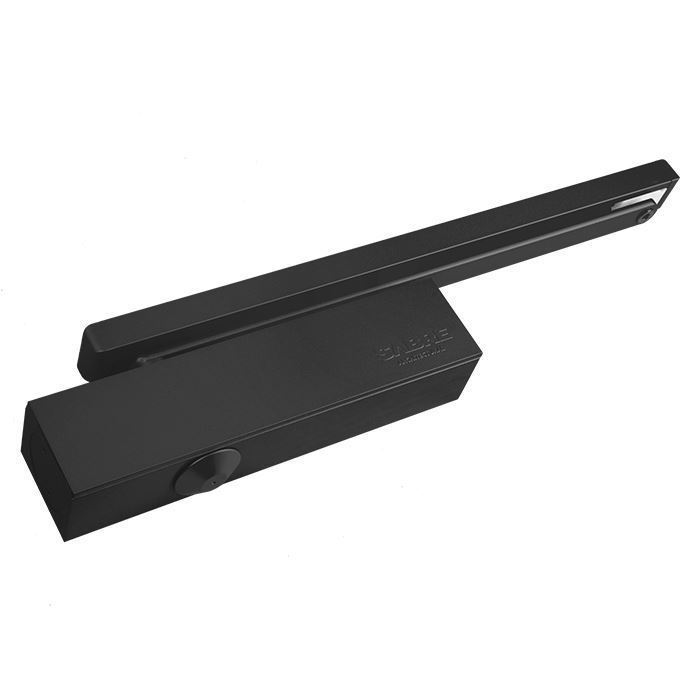

  • BLK - Black

SABRE 515 Cam Action Door Closer

  • Models to suit push and pull side applications
  • Angle bracket included on all push side application closers
  • Size 1 to 5 spring adjustable
  • Door sizes 750mm to 1250mm wide
  • Door weight 20kg to 100kg
  • Adjustable back check
  • 10 year mechanical warranty

FINISH

  • SIL - Silver
  • SSS - Satin Stainless Steel
  • BLK - Black
