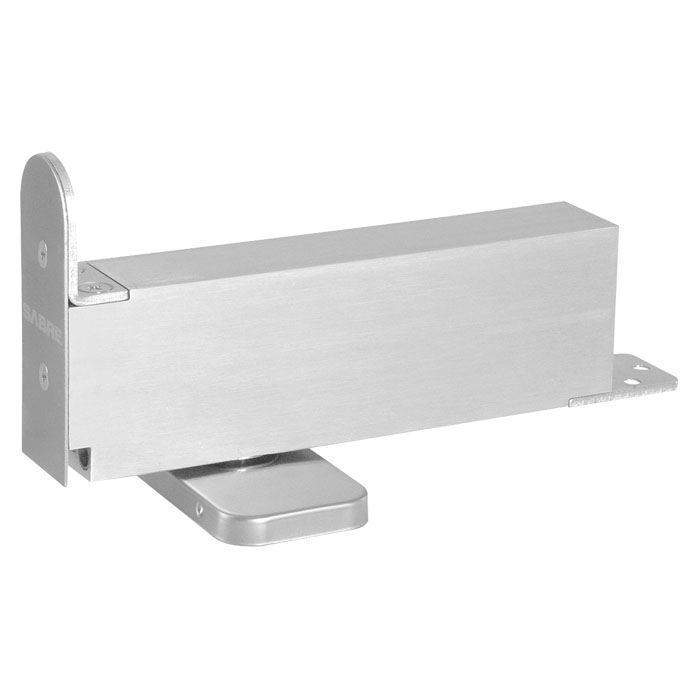

SABRE 893 Bottom Rail Concealed Door Closer - Hold Open 90°

SUITABLE FOR TIMBER DOORS. The SABRE 893 Bottom Rail Concealed Door Closer includes the same world-wide patented technology as its glass door equivalent, the 8835 Glass Patch Door Closer. It has the same highly efficient hydraulic mechanism which makes it easy to open with the minimum of effort. Visually it’s perfect as it is completely concealed within the door itself. Due to it possessing a hydraulic mechanism it can be controlled just like other hydraulic closers so you can easily adjust the latching and closer speeds without the need to remove from the door once installed. It also has the benefit of an adjustable base plate to help align the door if it is slightly out during installation. It is simple to maintain and keep clean and suitable for high traffic doors like kitchens or for any timber door application that requires double action opening. Note: Top Pivot not supplied with product.
SKU:
SAB-BR893-90HO-SSS
90º Hold Open Fixed Strength - 3 5 Year Mech Warranty Stainless Steel
Full description

SABRE 893 Bottom Rail Concealed Door Closer - Hold Open 90°

  • Suitable for Single or Double Action Doors
  • Fixed Spring Strength Size 3
  • Adjustable Latching and Closing Speeds
  • Maximum 150° Open Angle
  • Suitable for Door Widths up to 950mm
  • Maximum Door Weight 100kg
  • Minimum Door Thickness 40mm
  • Easy Installation Compared to using Labour intensive
  • Adjusted Door Alignment
  • Suitable for Timber doors
  • Non Handed

FINISH

  •  SSS - Satin Stainless Steel

SABRE 893 Bottom Rail Concealed Door Closer - Hold Open 90°

  • Suitable for Single or Double Action Doors
  • Fixed Spring Strength Size 3
  • Adjustable Latching and Closing Speeds
  • Maximum 150° Open Angle
  • Suitable for Door Widths up to 950mm
  • Maximum Door Weight 100kg
  • Minimum Door Thickness 40mm
  • Easy Installation Compared to using Labour intensive
  • Adjusted Door Alignment
  • Suitable for Timber doors
  • Non Handed

FINISH

  •  SSS - Satin Stainless Steel
